HOME> 초음파 스캐너 > 듀얼 헤드
선형 및 볼록 헤드 를 동시에 보유함으로써 하나의 스마트 스캐너로 전신을 스캔 할 수 있습니다. 기기를 뒤집기 만하면 얕은 검사 에서 심층 검사로 전환 할 수 있습니다. 복부 내부의 깊은 구조, 표면 해부학, 사지 및 심장까지.
Viatom 3 in 1 protable handheld wireless ultrasound scanner : Linear + Convex + Phased Array Probe, ultra-clear image, ultra-long standby, to meet the needs of all-day work.
| 듀얼 헤드
| 풍모
작동하기 쉬운 무선 연결.
내장 및 교체 가능한 배터리.
무선 충전을 지원합니다.
고급 디지털 이미징 기술, 선명한 이미지.
비용 효율적이고 작고 가벼우 며 휴대가 간편합니다.
병원, 응급, 클리닉, 야외에 적용 가능합니다.
태블릿 및 스마트 폰 (iOS, Android)과 호환됩니다.
지능형 터미널 플랫폼, 애플리케이션, 스토리지에 대한 강력한 확장 기능
Wireless 3 in 1 Ultrasound Scanner
Triple Headed: Convex, Linear and Cardiac Probe
C10t wireless 3 in 1 portable ultrasound system is designed to simplify the use of the instrument without sacrificing functionality. 3 in 1 probe include convex probes, straight probes and cardiac probes. Doctors only need to adjust the ultrasound software to complete the probe replacement.
Convex probe: The center frequency is 3.5/5Mhz, and the scanning depth is 90-305mm. Suitable for abdominal and pelvic organ scanning, FAST scanning, pleural effusion scanning and lung ultrasound scanning.
Linear probe: The center frequency is 7.5/10Mhz, and the scanning depth is 20-80mm.Suitable for the examination of superficial organs such as breast, thyroid, lymph nodes, etc. and blood vessels such as a carotid artery, upper extremity artery, lower extremity artery and other small organs, musculoskeletal examination.
Heart probe: The center frequency is 2.5/5Mhz, and the scanning depth is 90-160mm. Suitable for cardiac ultrasonography of the heart and thoracic arteries and ultrasonography of intracranial blood vessels.

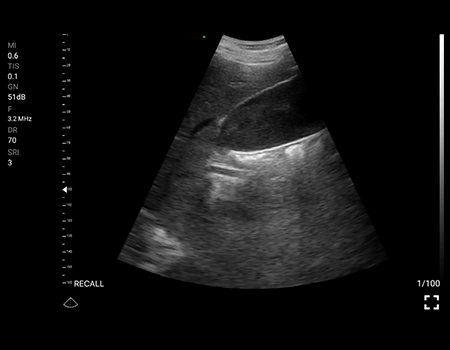

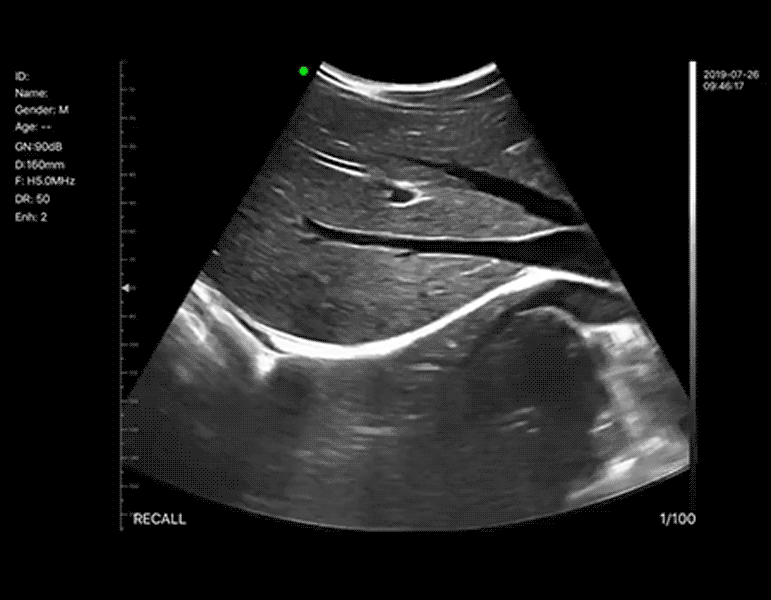

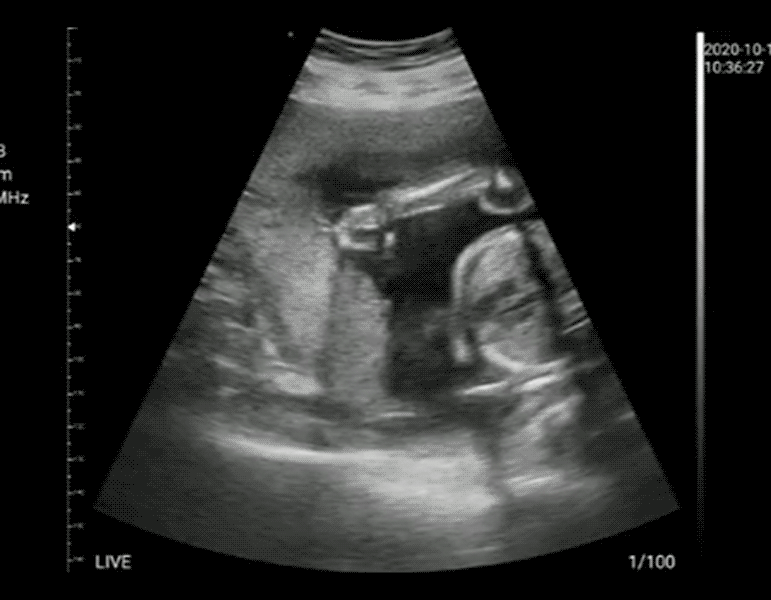

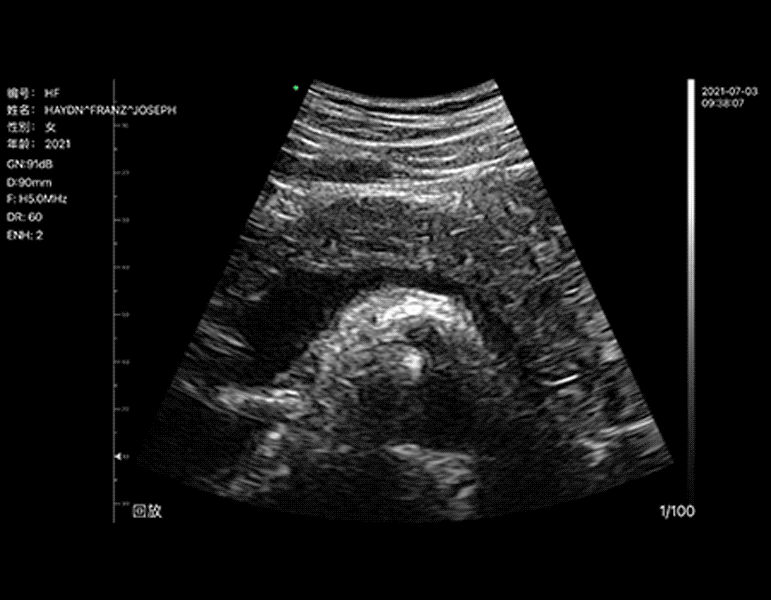

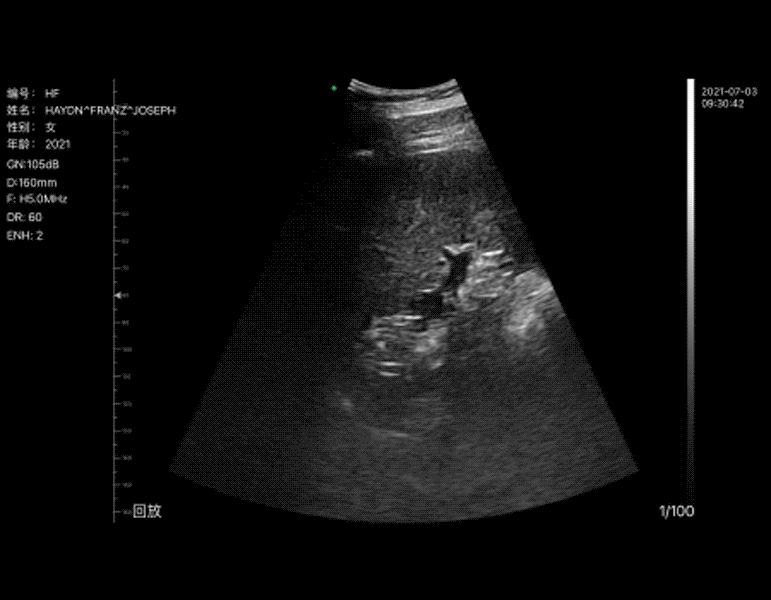

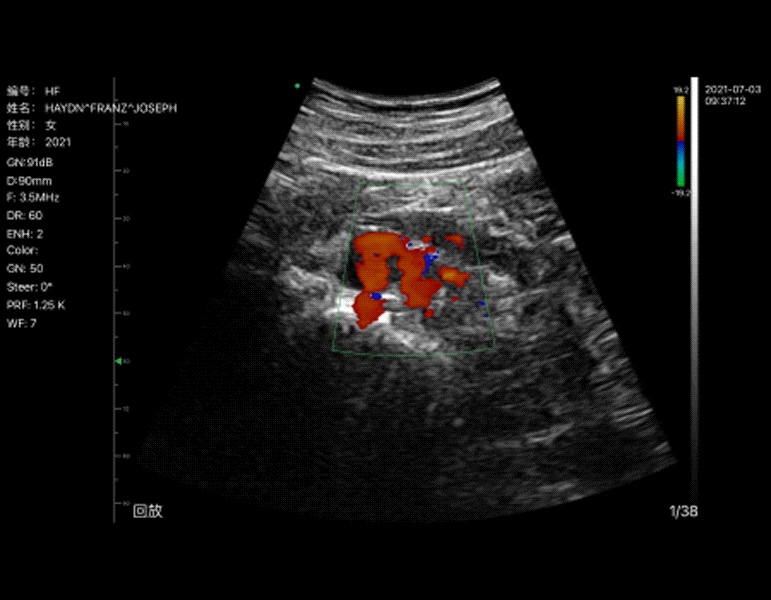

손바닥의 프리미엄 품질 이미지
초당 18 프레임의 빠른 속도 로 빠른 진단 이미징을 위해 최대 선명도의 작은 세부 사항을 얻을 수 있습니다. HD로 환자의 건강 문제를 확인하십시오.
손바닥의 프리미엄 품질 이미지
초당 18 프레임의 빠른 속도 로 빠른 진단 이미징을 위해 최대 선명도의 작은 세부 사항을 얻을 수 있습니다. HD로 환자의 건강 문제를 확인하십시오.
 |  |  |  |
|---|---|---|---|
 |  |  |  |
 |  |  |  |
Pioneering in Wireless Technology
Based on the wifi+5G remote ultrasound diagnosis system, ultrasound doctors can remotely diagnose patients with complex diseases.
Medical staff can manage and share ultrasound scan results with patients through ultrasound software anytime, anywhere. The image supports real-time saving and arbitrary enlargement. The video resolution can reach up to 1000 frames, and supports manual and automatic playback. Doctors can save cases and print reports with one click.
Wireless 3 in 1 ultrasound takes ultrasound scanning in medical institutions to a new level, helping medical staff to make quick and confident assessments anywhere, and also promotes better application of ultrasound medicine in primary hospitals, allowing more patients to receive economical and efficient examination and diagnosis.
Emergency inspection of each department in each place
Primary/Elderly Medical Physical Examination Screening
Application
Visual puncture guidance in clinical operating room
Ultrasound teaching daily drill
Maternal and Child Health Prenatal Care
Construction of remote diagnosis medical system
| 사양
Measure | B:Length, Area/Circumference, Angle,Trace,Distance,GA(CRL,BPD,GS,FL,HC,AC), EFW(BPD,FL)
B+M: Heart Rate, Time, Distance, LVID( LVIDd, LVIDs, EF, SV)
B+PW:Velocity, Heart Rate(2), S/D, Depth |
Presets | Abdomen. Gynecology. Obstetric. Cardiac. Urology. Kidney. Lung.
Thyroid. Small parts. Pediatrics. Vascular. Carotid. Breast. MSK. Nerve |
Display Mode | B
B+M
Color
PW
PDI |
Weight (g) | 227 |
Dimensions
(mm) | 157(h)x70(w)x30(d) |
Elements | 128 |
Radius | R45 |
Length | R45 |
Depth | Convex:90~305mm
Linear:20~80mm
Cardiac:90~160mm |
Frequency | Convex:3.5/5Mhz
Linear:7.5/10MHz
Cardiac:2.5/5Mhz |
Type | Convex/Linear/Cardiac
Single head |
